Sophos (UTM)

The Sophos UTM device provides firewall and UTM capabilities. Note that this series of devices is being EOL'd by Sophos in favor of the SFOS devices (June 2026), which can also be integrated with Knocknoc following this guide.

UTM Configuration

Firstly create an API key

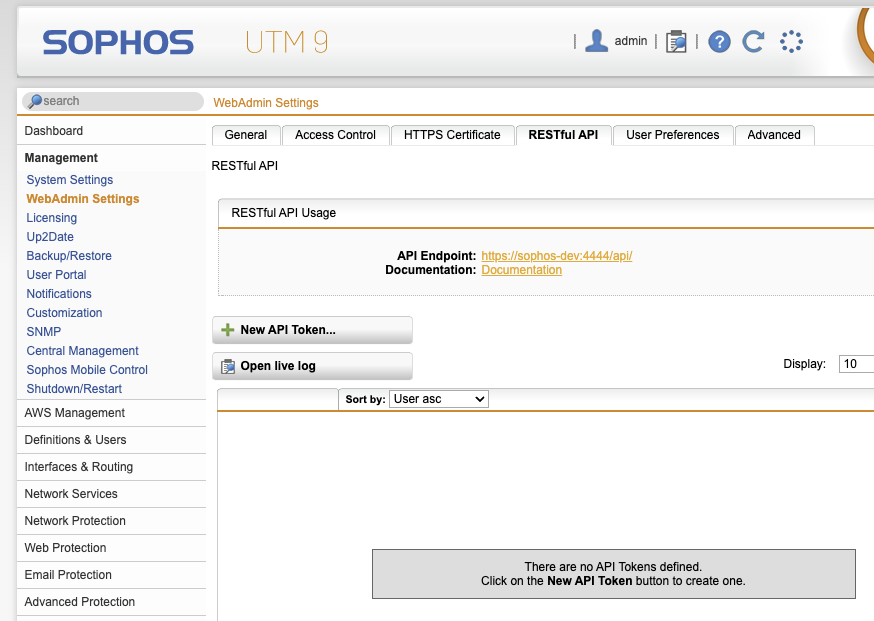

  1. Go to Management -> Web-Admin Settings -> Restful API -> New API TokenSophos UTM WebAdmin Settings on the RESTful API tab, with the API endpoint shown and no tokens defined yet

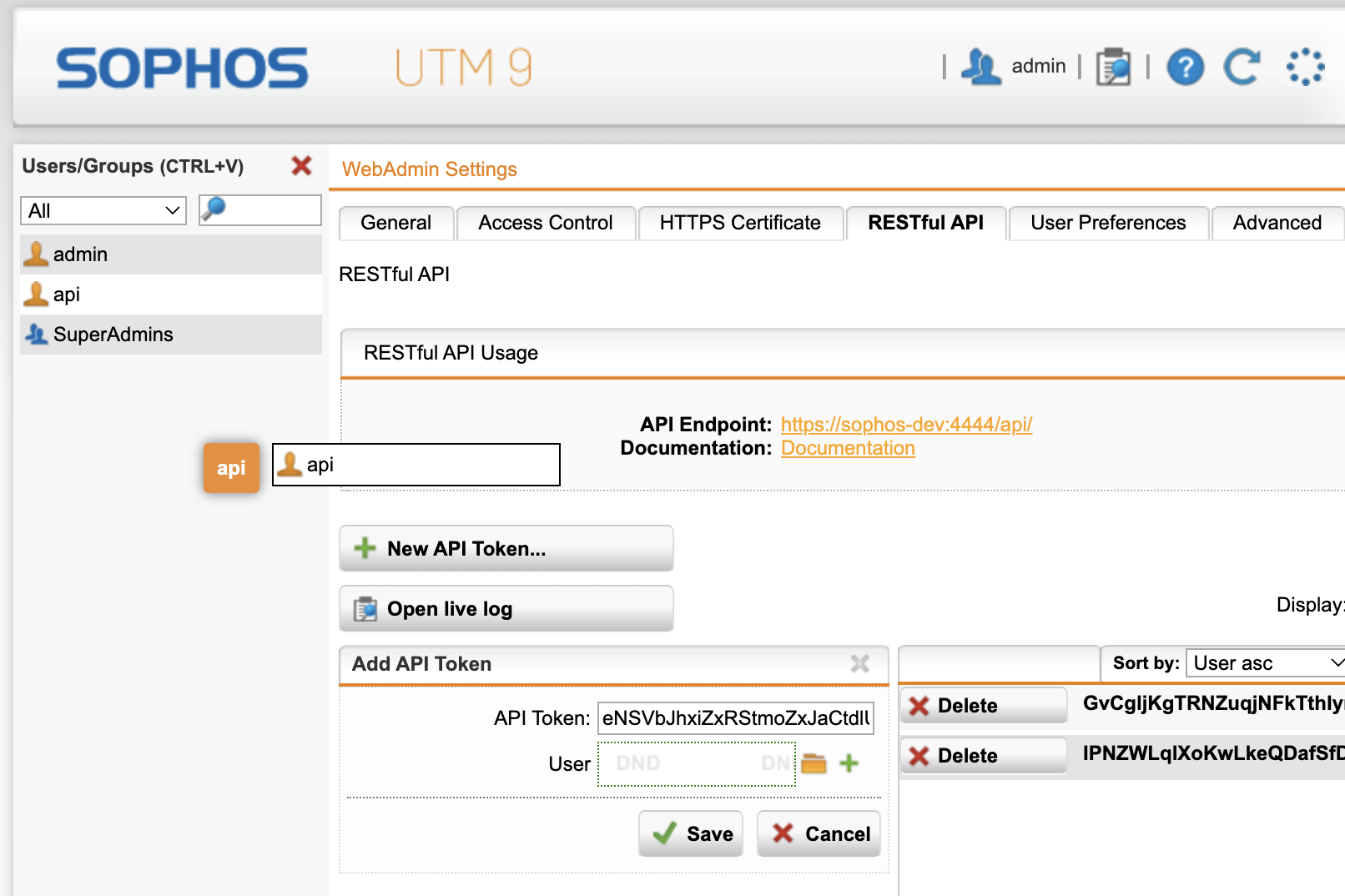

  2. Click the little folder button and choose the user (can be the 'api' user, does not need Admin) dragging this to the User fieldThe Add API Token dialog, creating a token against the api user
  3. Save and copy the resulting API token

Create a network group object, this is what Knocknoc will populate with IP address information, for use within a firewall rule.

  1. Browse to Definition & Users -> Network Definitions

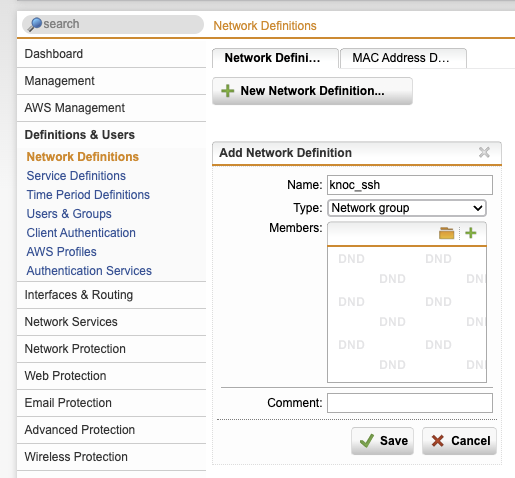

  2. In the filter select groups -> new network definition -> enter the name and type as "Network group" and SaveSophos UTM Definitions & Users > Network Definitions, with Add Network Definition creating the Knocknoc network group
  3. Log in to a server with the Knocknoc Agent installed.
  4. Use the Knocker utility /opt/knocknoc-agent/knocker/knocker enable sophos
  5. Enter ip:port (e.g., 203.0.113.4:4444)
  6. Provide the API key (from earlier) and hit enter

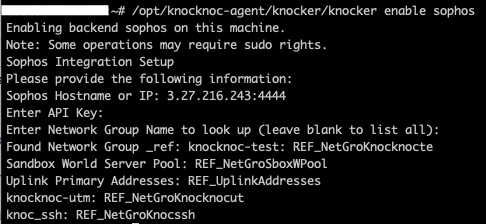

  7. It will list all network groups and their internal name. Note if you get a 'jq' error you may need to install the 'jq' JSON parser (apt-get install jq).The knocker terminal output enabling the Sophos backend, prompting for the hostname and API key and then listing the network groups it found
  8. Copy the internal name / reference, you will need this in the Knocknoc configuration.
  9. In our example, "knoc_ssh" provides "REF_NetGroKnocssh", copy this for the below step.

Knoc Configuration

In the Knocknoc admin portal, go to Knocs, choose Create new knoc, then Sophos under Inline.

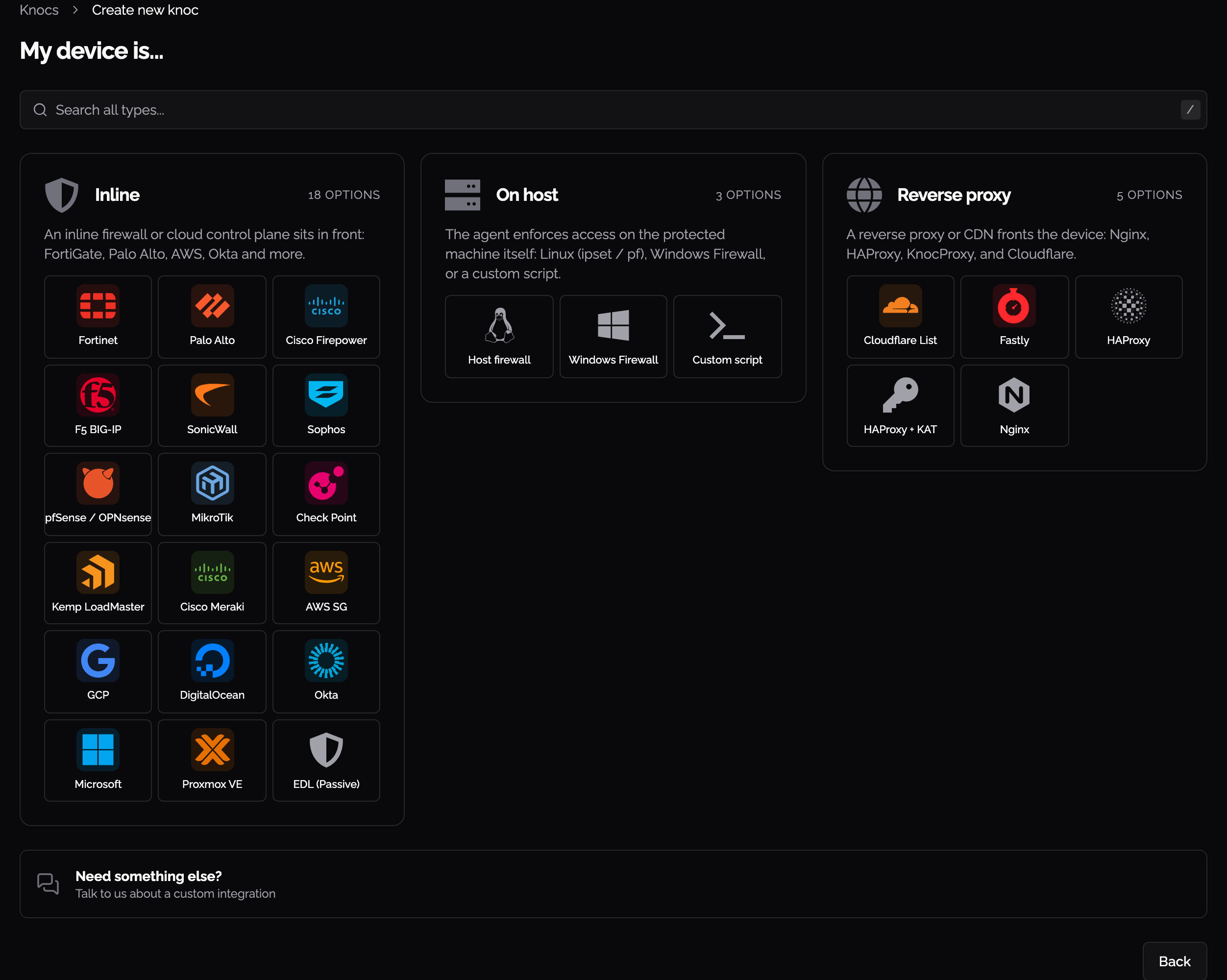

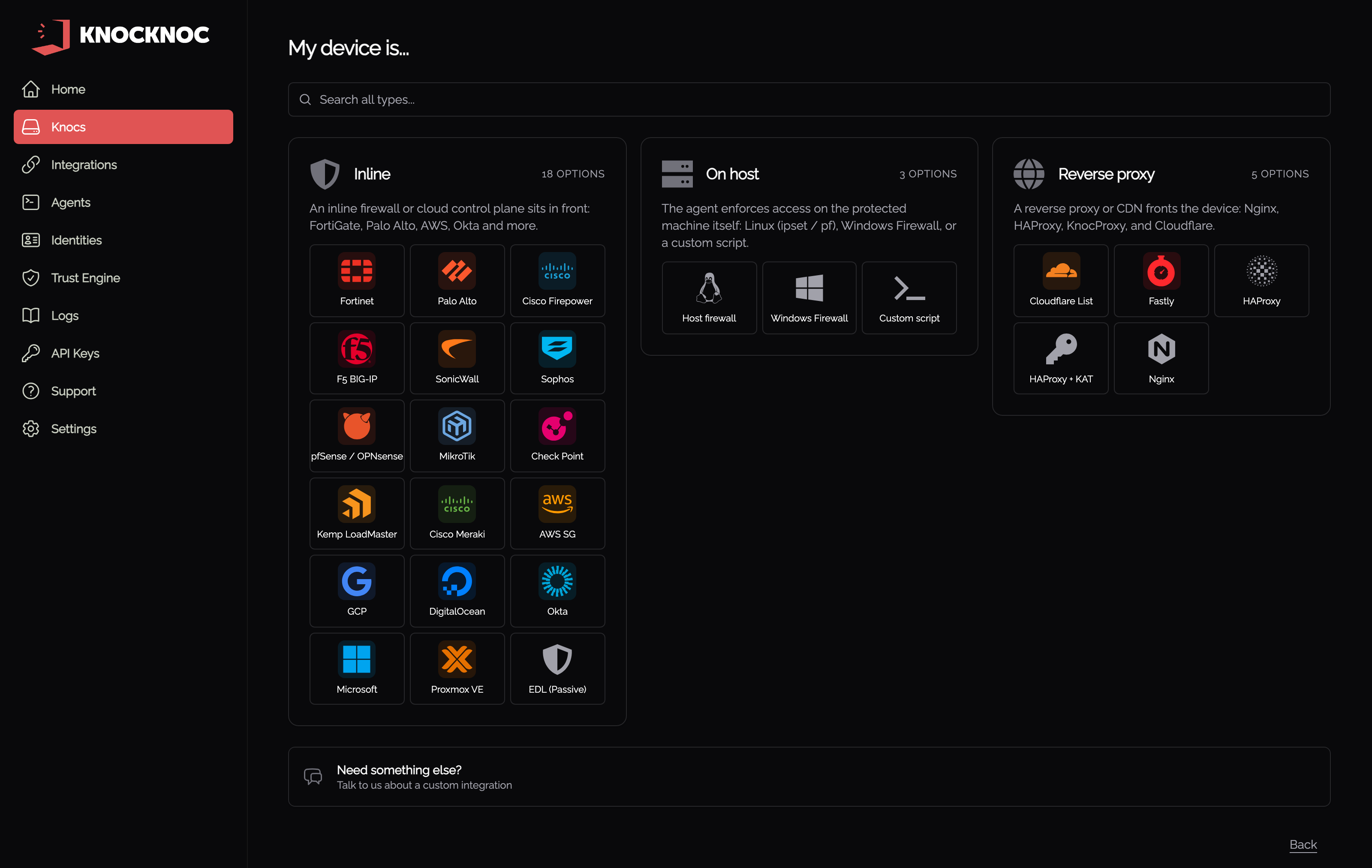

The Create new knoc device picker, with Sophos under Inline

Pick Sophos UTM, choose the agent that reaches the firewall, then enter the UTM's URL and API key:

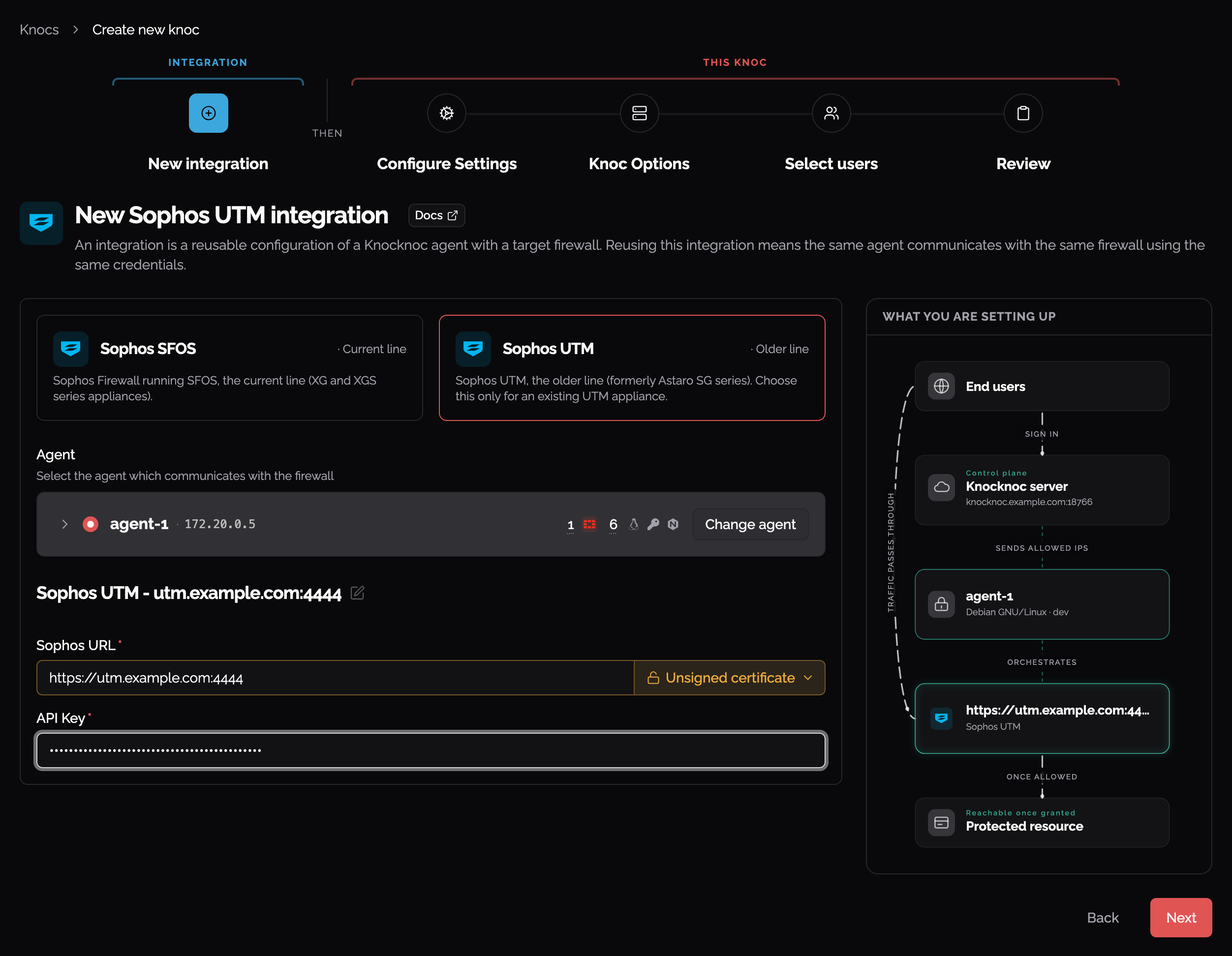

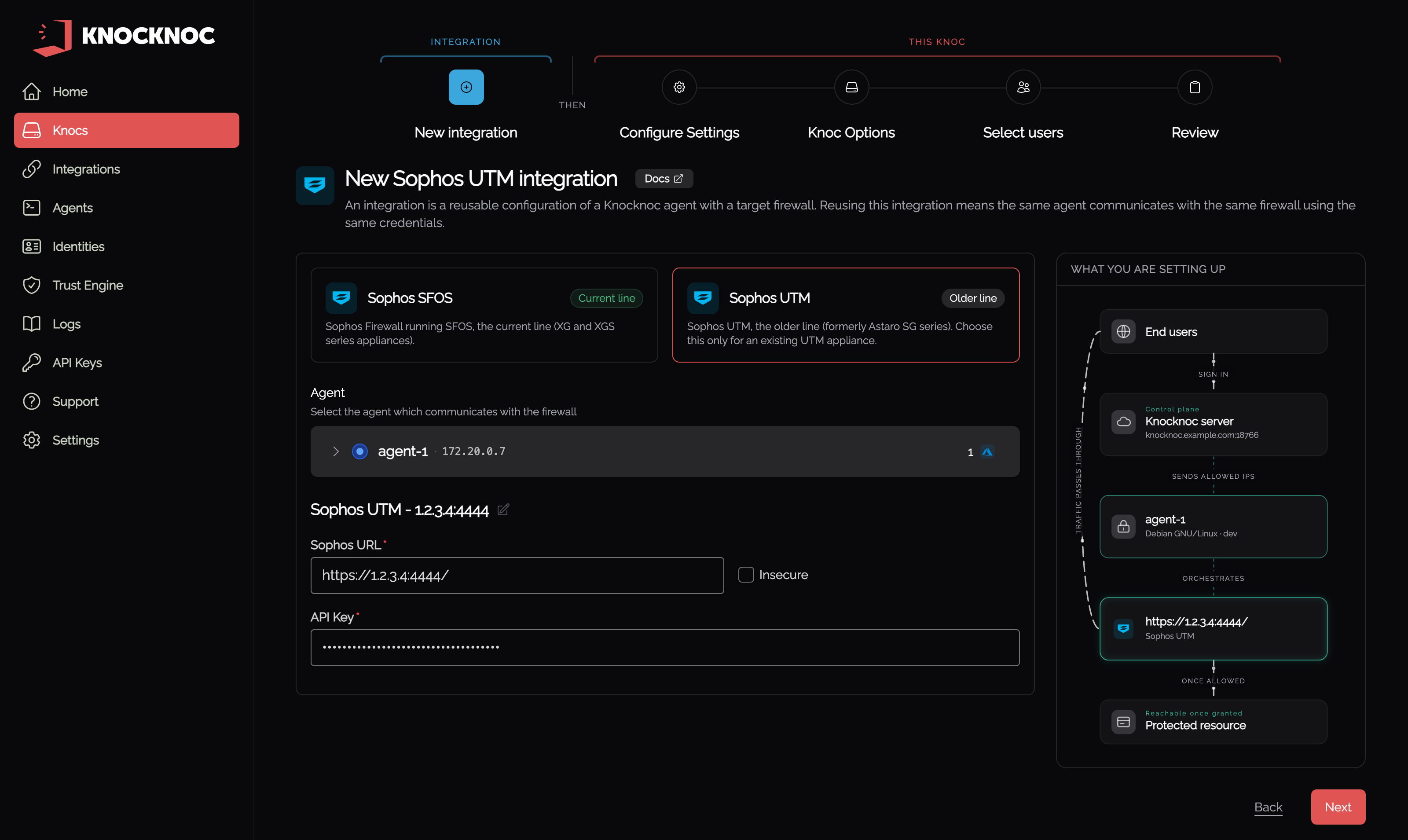

Wizard step 1, the Sophos UTM integration, with the agent chosen and the UTM URL and API key entered

Then name the network group this knoc writes to:

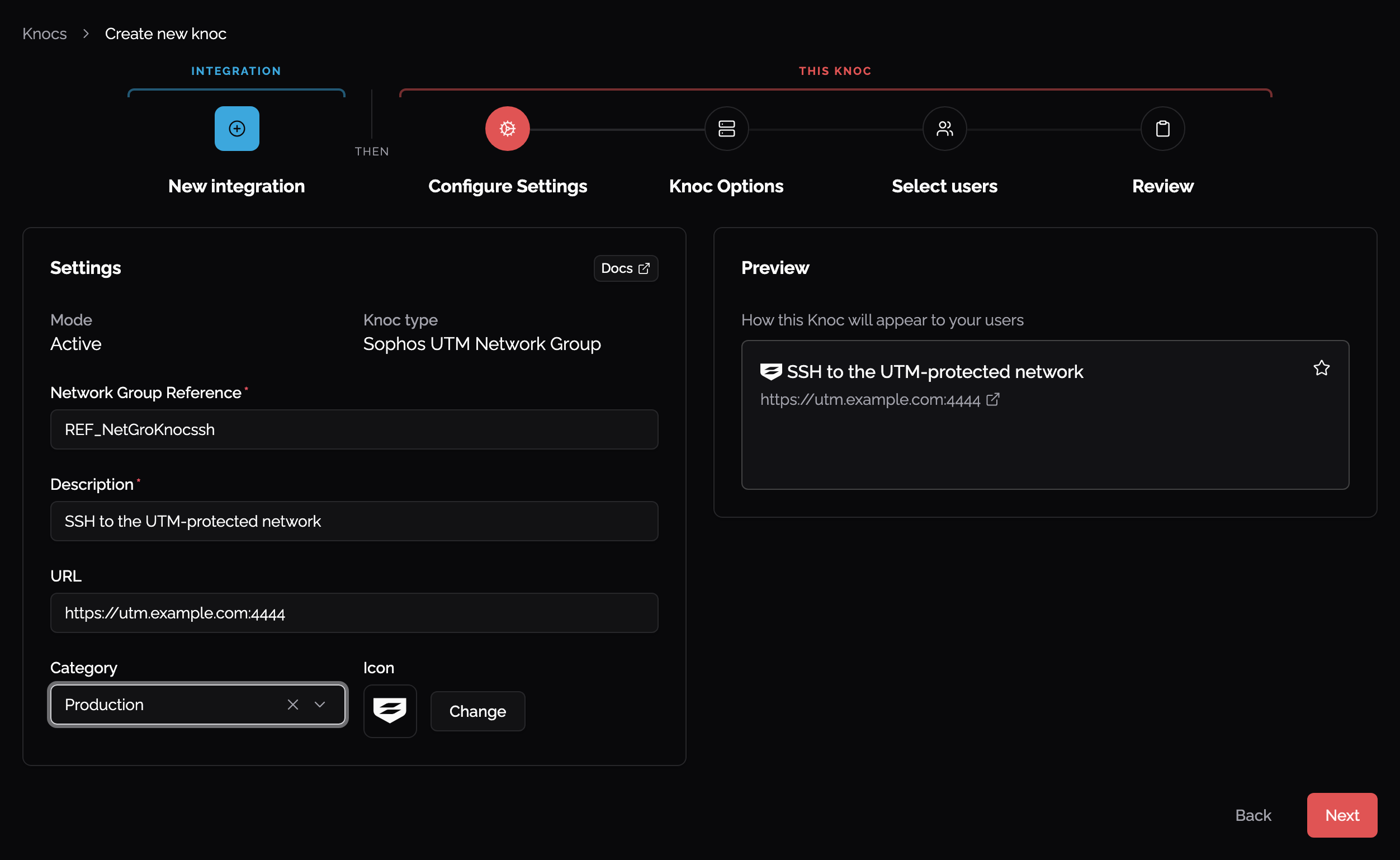

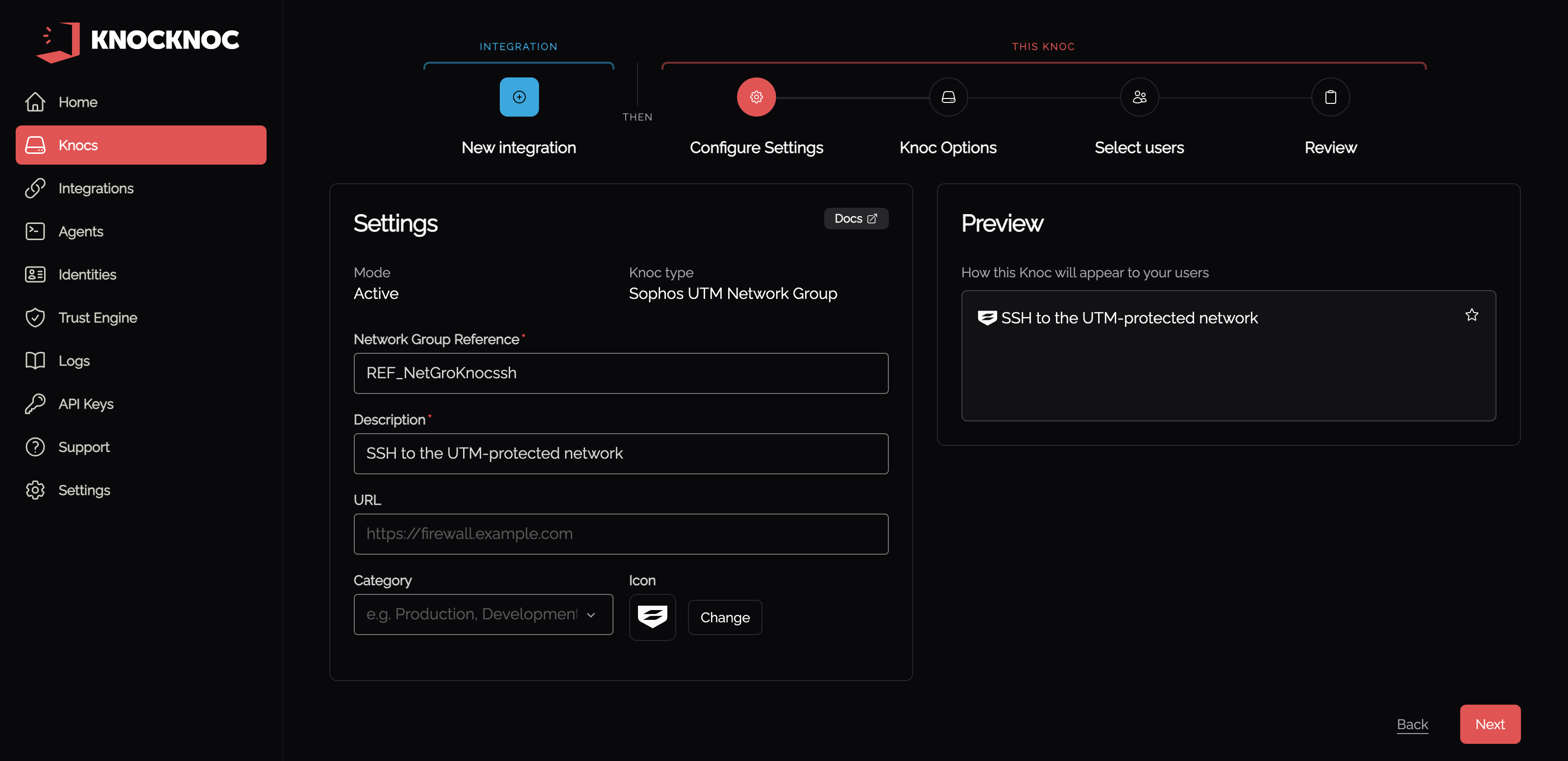

Wizard step 2, the knoc settings, with the Network Group Reference and description

Enter the URL of the Sophos device (e.g., https://203.0.113.4:4444/)

Set the certificate check on the URL field to Unsigned certificate if the device's certificate is not CA signed or in the trusted certs. While this is discouraged, if you have deployed the Knocknoc Agent in a network location alongside the device this reduces the risk of MITM.

Provide the API key.

Provide the 'network group reference', also known as the Internal name. This is obtained per network group from the Knocker utility in the previous step.

Assign this to a test user or a group, and proceed to testing.

Testing it out

Log in to the Sophos UTM device, browse to Definitions & Users -> Network Definitions -> Network Groups.

Log in to Knocknoc as the user that has been assigned this Knoc.

Select the relevant group on the Sophos UTM device, you'll see the users IP address has been added to the network definition, along with their username.

Edit Network Definition after a grant, with the granted host added to the group's members

You're good to use that group within a policy.
